SMC氣缸JMB(JMDB)氣缸：
| 型號 | 系列 | 動作方式 | 缸筒內徑 |
|---|---|---|---|
| 標準形 | JMDB | 單桿雙作用 | 32, 40, 45, 50, 56, 63, 67, 80, 85, 100 |

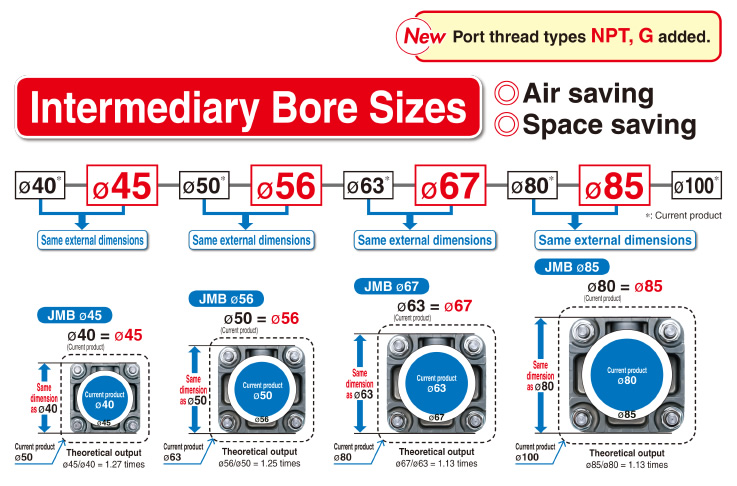

Air saving, Space saving

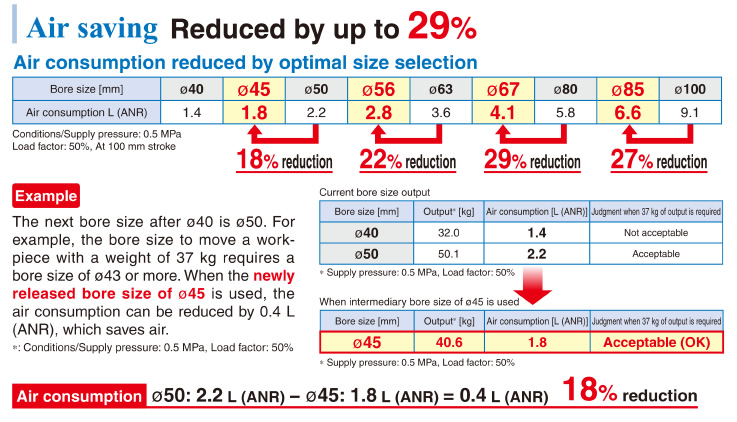

Air saving Reduced by up to 29%
Air consumption reduced by optimal size selection
(Compared with the current MB series, ?50, 100 mm stroke)

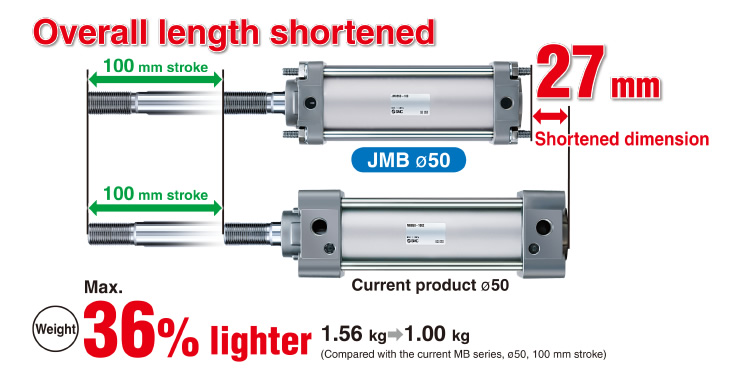

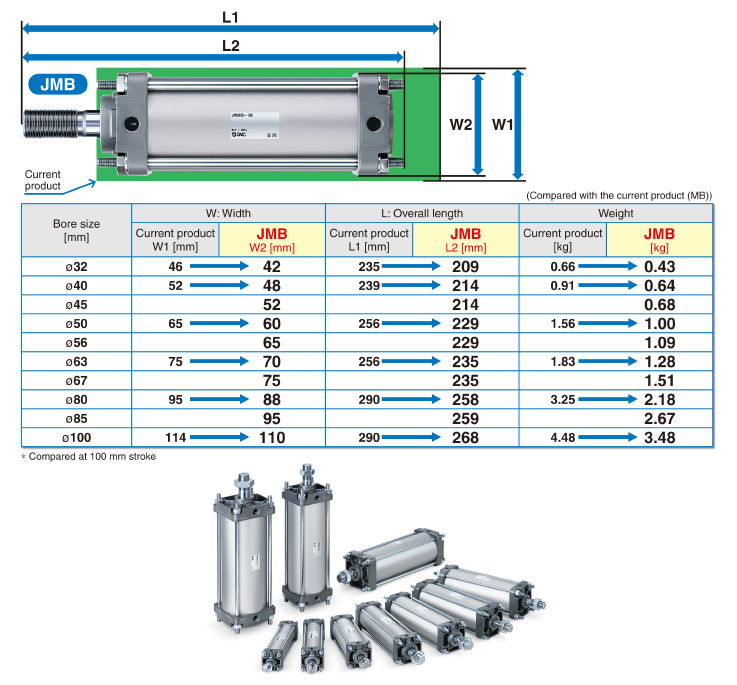

Compact and lightweight (?32, ?40, ?50)
?Air cushion adjustment is not required due to non-adjustable air cushion.
?Built-in rubber bumper reduces the metal noise that occurs when piston stops.
